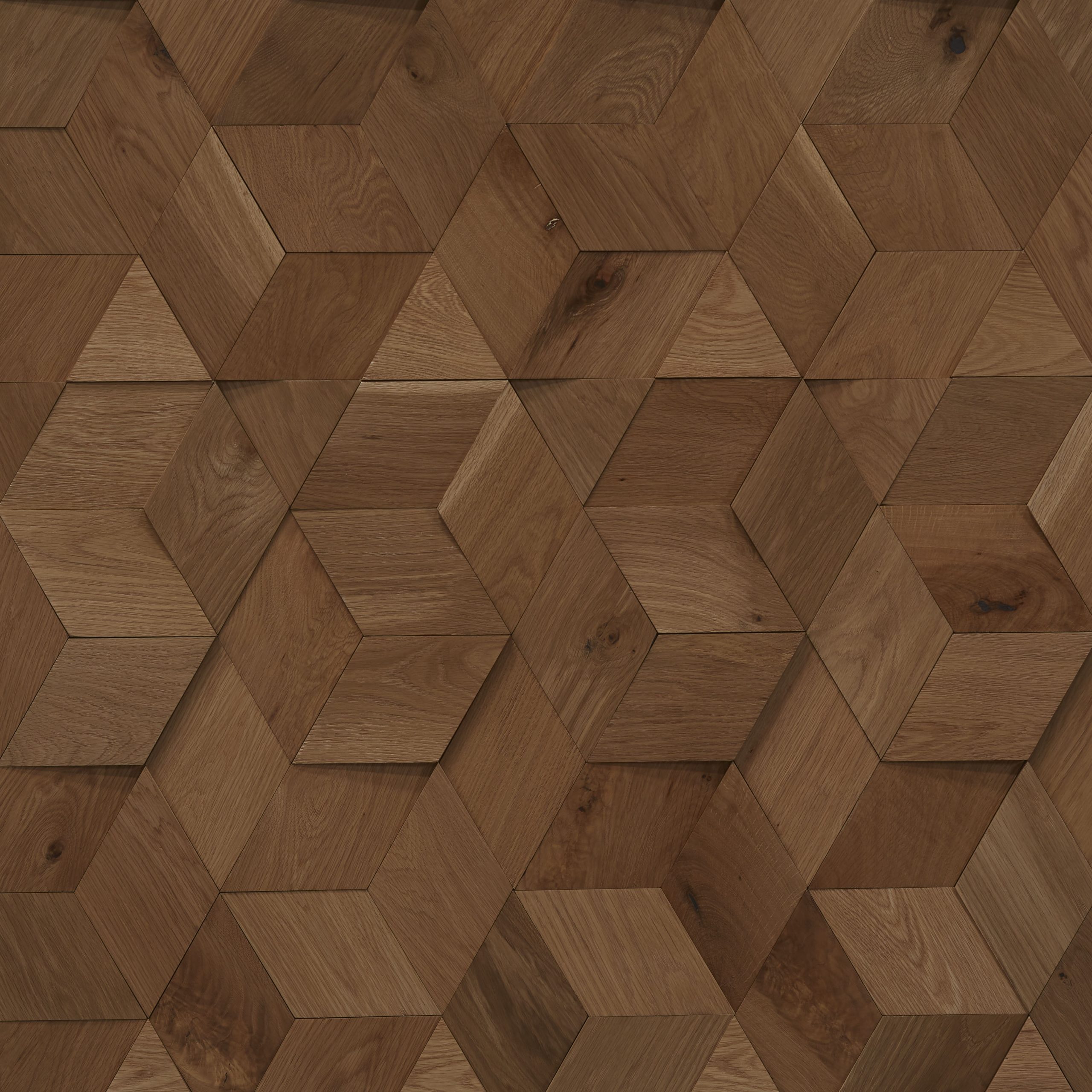

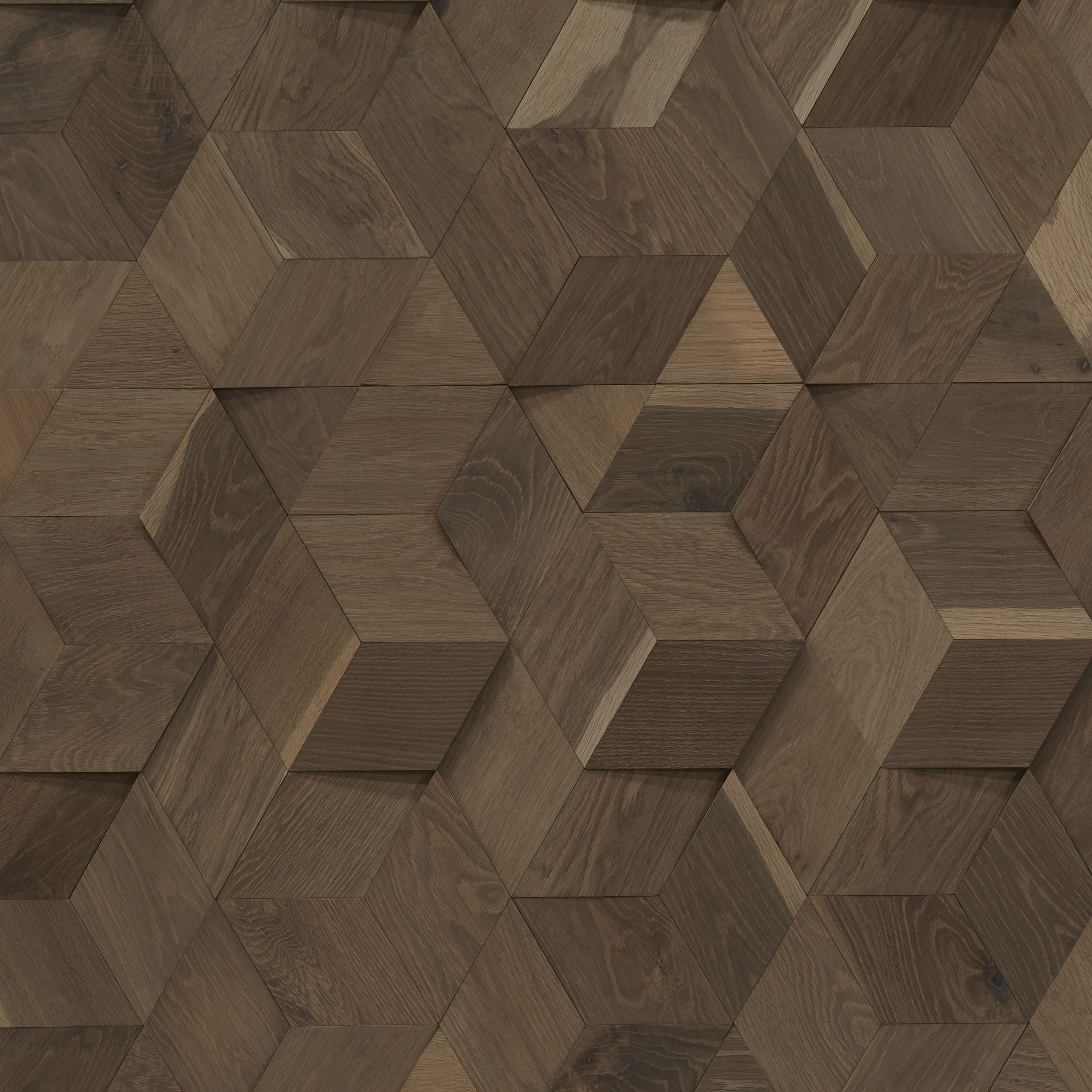

Closely set parallelograms mounted to a masonite backing. Specified finish color determines wood species (Walnut or Oak) and surface treatment. Can be installed either horizontally, vertically, or diagonally with construction adhesive and screws.
SPECIES: Oak or Walnut (Defined per color, see matrix)
GRADE: Character
THICKNESS: 15/16″ (23.81 mm)
INSTALLATION METHODS: Construction Glue & Nails
RADIANT HEATING: Not Applicable
COVERAGE/BOX: 18.32 sq. ft. (1.701 m2)
WEIGHT/BOX: 60.10 lbs. (27.26 kg) Walnut 62.10 lbs. (28.16 kg) Oak
SPECIFICATION NOTES
*Weight, coverage and dimensions may vary depending on finish and the natural expansion and contraction of wood.
SURFACE TEXTURE: Fine Sawn or Smooth
CUT PATTERN: Angled
TILES/BOX: 8 Pieces
COVERAGE/TILE: 2.29 sq. ft. (0.212 m2)
WEIGHT/TILE: 6.70 lbs. (3.03 kg) Walnut 7.30 lbs. (3.31 kg) Oak
INSTALL DIRECTION: Horizontal, Vertical, Diagonal
FIRE RESISTANT: Optional “Class A Rating” Fire Retardant
