Resonance Baffles

Blade and Custom Panels

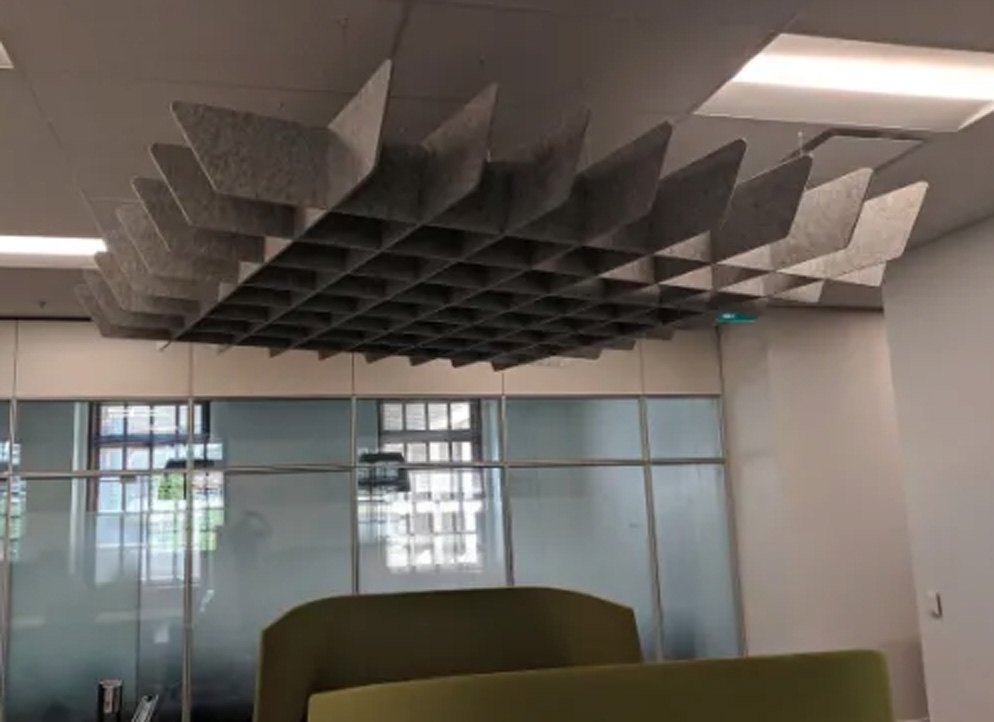

Resonance Baffles impress with their performance in optimising room acoustics and also as a creative design element. Be it in round or square shaping – Resonance Baffles can be visually integrated into your rooms discreetly and inconspicuously, or deliberately as a prominent eye-catcher.  Also, a straightforward installation using optional hardware will make this product a winner with your contractor.

In high-ceilinged rooms, partition walls are often insufficient for acoustic optimisation. Resonance Baffles provide a remedy here. The panel construction and the free positioning of the baffles are the ideal acoustic supplement for difficult spatial situations. Baffles can be mounted on many types of ceilings. In addition, we have additional hardware systems that allow for tensioning between floor and ceiling.

Product Features


  • PET polyester fiber made from 50%  recycled plastic.
  • 13 stock colors. High quality printing is best achieved on white.
  • Sizes up to 4'x8' Thickness: 9mm (Resonance Panel)
  • Class A Fire Rating (ASTM E84)
  • The panels obtain an absorption coefficient of 0.80* at a frequency of 1,000 HZ. This measurement is based on the raw PET material used in the creation of Resonance Art and Resonance Embosed printed and embossed ceiling tiles and wall panels.

A quote is based on the number of panel(s) to be printed. Please provide top & bottom length and left & right vertical dimensions. A sample of the image is preferred, but not required.

​If printing on the baffles, vector files are preferred in a print ready PDF or ".ai" format, in any size, or scaled to finished size. For photographic or bitmap images we recommend a minimum of 300 dpi at actual size.

Forescolor can be universally applied with any of these collections.
Carved Screens by Interlam
Resonance by Acoustical Art Concepts
Art Diffusion and Elements by Interlam
Panel diagram for vertical installation
Panel diagram for Horizontal installation
Storage and Installation Conditions
This video describes the desired conditions during the temporary storage (48 hours acclimatization) and the actual installation of the Clicwall panels. Four possible substructures for attaching Clicwall are also described.
Installation Instructions
In this video you can discover how a complete wall is covered with Clicwall from the corner of the room. We show the different possibilities to attach Clicwall to the substructure and how you need to add expansion joints.
Finishing & Accessories
This video focuses on finishing the wall so that the necessary expansion joints are no longer visible. You get an overview of the different options from the accessory range and how it can be used.
Resonance Cloud Baffles
Standard sizes and standard shapes. Choose from several different shapes, with or without beveling, for a great look and quick shipping.
Circle Cloud Baffle
The Circle Cloud Baffle has standard sizes of 48" and 24". The clouds measure (at a minimum) 9mm in thickness. They are available in all Resonance Acoustic Colors.
Hexagon Cloud Baffle
The Hexagon Cloud Baffle has standard sizes of 48" and 24". The clouds measure (at a minimum) 9mm in thickness. They are available in all Resonance Acoustic Colors.
Square and Rectangle Cloud Baffle
Square Cloud Baffles can be a maximum size of 48"x48" and Rectangle Cloud Baffles have a maximum size of 48"x96".  The clouds measure (at a minimum) 9mm in thickness. They are available in all Resonance Acoustic Colors. Beveled edges are optional.
• Lip around full perimeter of each tile

• Ideal for installation where tiles can be rotated

• 23 5/8" x 23 5/8" x 13/16"  Exact size
• Lip around full perimeter of each tile

• Tile designed specifically for ceiling grid installation

•  Protruding slat extends beyond the grid system

• 23 5/8" x 23 5/8" x 13/16"

• Support added to avoid sagging when installed
• Lip added to two sides to allow for unique transitions

• Tile designed to be installed as a wall panel

• 23 5/8" x 23 5/8" x 13/16"


Side view

Each panel is wrapped on 3 sides in solid colors and natural patterns. Click on each pattern to view the side detail up close.

available patterns

downloads & resources

Available colors

EzoBord 3/8" (9m)
EzoBord 1/2" (12mm)


order samples

Resonance Baffles
firsthand by requesting a sample. If you are curious about its look, texture, and overall feel, samples will provide you with the opportunity to explore its characteristics.
Note: Metal Screens are sampled in a full sized 4 x 8' blueprint paper sheet.
