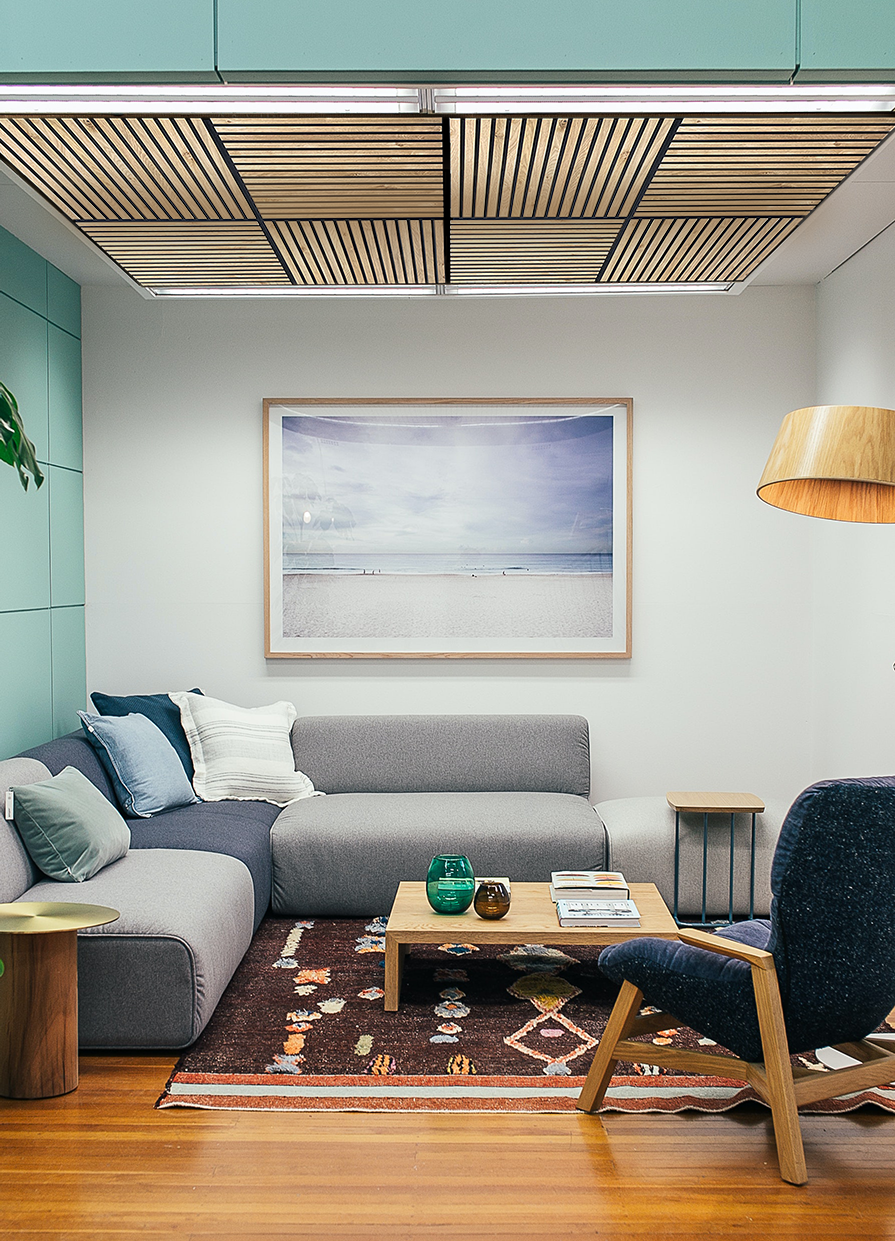

Akutile Collection from Acoustical Art Concepts

Slats backed with a Resonance Acoustic panel and faced with a beautiful wood veneer (shown below) or any high pressure laminate from Lab Designs Laminates, or any phenolic backed metal laminate from Specified Metals. The same veneer that is on the face of the Akupanel can be sold separately to highlight your design

‍Please note: Common characteristics of natural wood veneers include variations in color, grain, texture, and figure. “End to end” alignment and matching of the veneer cannot be guaranteed from panel to panel. *This possible color variation is prominent in our real wood veneers. Standard PET backing and MDF slat color will be black. Other colors available upon request*

‍

Product Features

Specifications:

Size: 23 5/8” x 23 5/8”
Thickness: 20mm (23 5/8” x 23 5/8” x 13/16” )
Material: PET Polyester Fiber, MDF, Wood Veneer

Acoustical Rating:

Akupanel from Acoustical Art Concepts is an optimal solution for efficient sound absorption and lowering noise reverberation time. As seen in the graph below, the panel obtains a Noise Reduction Coefficient of 0.97 at a frequency of 1,000HZ. Loud speech and “regular” noise in the home is typically between 500-2,000HZ. The average Noise Reduction Coefficient within this frequency range is 0.66.

Fire Rating:

Each test is conducted in accordance with Standard ANSI/UL723 that determines the Surface Burning Characteristics of the material, specifically the flame spread and smoke developed indices when exposed to fire.
The core material of the PET and the wooden substrate materials are rated Class A. Please call for more information.

Recycled Materials:

Our PET polyester fiber panels are made from 50% recycled plastic and are 100% recyclable.

Cleaning:

PET: Spot clean using a mild water-free solvent, or dry cleaning product.
Slats/Facing: Wipe with a clean cloth and standard (non-clorine and non-amonia based) cleaner.
Clean only in a well ventilated room and avoid any product containing Carbon Tetra-chloride or other toxic materials. Do not use anything more abrasive than a cotton cloth on any part of the panel.

This is some button inside of a div block.

Forescolor can be universally applied with any of these collections.

Carved Screens by Interlam

Resonance by Acoustical Art Concepts

Art Diffusion and Elements by Interlam

Panel diagram for vertical installation

Panel diagram for Horizontal installation

Storage and Installation Conditions

This video describes the desired conditions during the temporary storage (48 hours acclimatization) and the actual installation of the Clicwall panels. Four possible substructures for attaching Clicwall are also described.

Installation Instructions

In this video you can discover how a complete wall is covered with Clicwall from the corner of the room. We show the different possibilities to attach Clicwall to the substructure and how you need to add expansion joints.

Finishing & Accessories

This video focuses on finishing the wall so that the necessary expansion joints are no longer visible. You get an overview of the different options from the accessory range and how it can be used.

When longer bladed baffles (longer than 8') are needed, J-Lock's are the solution.

Resonance Cloud Baffles

Standard sizes and standard shapes. Choose from several different shapes, with or without beveling, for a great look and quick shipping.

Circle Cloud Baffle

The Circle Cloud Baffle has standard sizes of 48" and 24". The clouds measure (at a minimum) 9mm in thickness. They are available in all Resonance Acoustic Colors.

Hexagon Cloud Baffle

The Hexagon Cloud Baffle has standard sizes of 48" and 24". The clouds measure (at a minimum) 9mm in thickness. They are available in all Resonance Acoustic Colors.

Square and Rectangle Cloud Baffle

Square Cloud Baffles can be a maximum size of 48"x48" and Rectangle Cloud Baffles have a maximum size of 48"x96". The clouds measure (at a minimum) 9mm in thickness. They are available in all Resonance Acoustic Colors. Beveled edges are optional.

RET1701

RET1702

RET1703

RET1704

RET1705

RET1706

RET1707

RET1708

RET1709

RET1710

RET1711

RIF002 / Black Resonance Panel / Gray Forescolor

RIF002 / Blue Resonance Panel / Dark Gray Forescolor

RIF002 / Multicolor Resonance Panels / Black Forescolor

RIF002-P / Charcoal Resonance Panel / Painted Yellow MDF

RIF005 / Black and White Resonance Panel / Black Forescolor

RIF001 / Printed Resonance Pane / Blue Forescolor

RIF001 / Black Resonance Panel / Red Forescolor

RIF001 / Black Resonance Panel / Gray Forescolor

RIF006-P / Black Resonance Panel / Black Forescolor

RV001

RV003

RV004

RV005

RV006

RV007

RV008

RV009

RV010

RV012

RV013

RV014

RV015

akutile "universal"

Click to enlarge image

• Lip around full perimeter of each tile

• Ideal for installation where tiles can be rotated

• 23 5/8" x 23 5/8" x 13/16" Exact size

akutile "ceiling tegular"

Click to enlarge image

• Lip around full perimeter of each tile

• Tile designed specifically for ceiling grid installation

• Protruding slat extends beyond the grid system

• 23 5/8" x 23 5/8" x 13/16"

• Support added to avoid sagging when installed

akutile "wall mounted"

Click to enlarge image

• Lip added to two sides to allow for unique transitions

• Tile designed to be installed as a wall panel

• 23 5/8" x 23 5/8" x 13/16"
