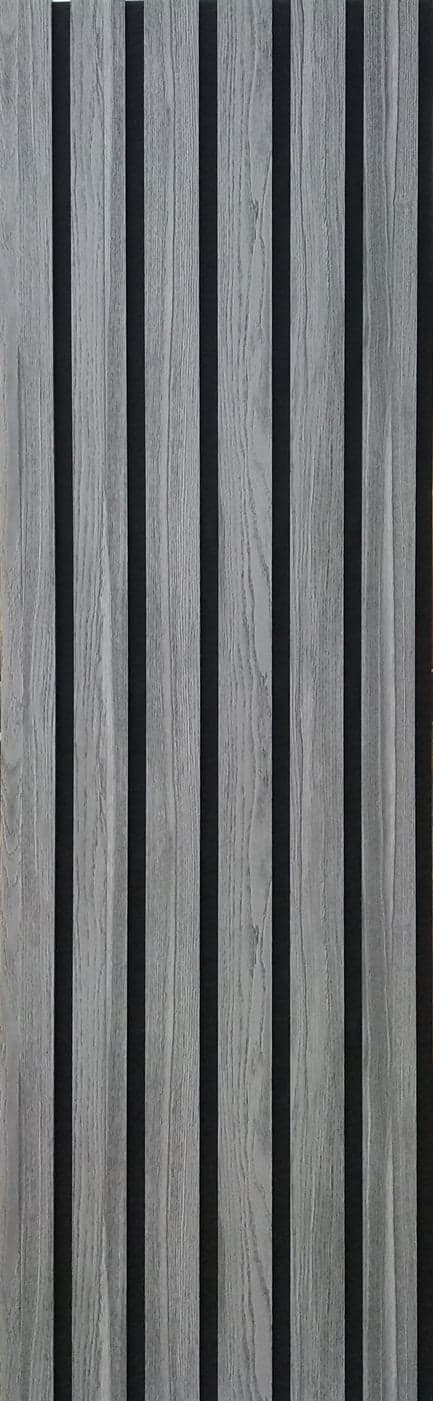

3x1 VN070 — Sample

Akupanel 3x1 VN070 is an acoustic panel with three-inch slats and one-inch spaces, faced with Lab Designs VN070 high-pressure laminate on a Resonance Acoustic PET backer.

Manufacturer Product Description

Three-inch slats with one-inch spaces on a Resonance Acoustic backer. These panels are faced with Lab Designs high-pressure laminate, which gives a uniform look from panel to panel; real wood veneer facing is also possible, and any high-pressure laminate will work.

Akupanel 3x1 is available with any Resonance Acoustic color as the base panel, ForesCOLOR or MDF as the middle layer, and a wood veneer, high-pressure laminate or phenolic-backed metal laminate face.

Specifications

• Slat Layout: 3" slats with 1" spaces
• Panel Size: 24" × 96"
• Thickness: 22 mm (.866")
• Composition: Resonance Acoustic PET base, ForesCOLOR or MDF middle layer, facing in wood veneer, HPL or phenolic-backed metal laminate
• Facing: Lab Designs high-pressure laminate; real wood veneer possible
• Acoustic Rating: NRC 0.52
• Fire Test: PET backer: flame spread 0, smoke 350. Black through-colored MDF: flame spread 15, smoke 5 (Class A)
• Cleaning: PET: spot clean with a mild water-free solvent or dry cleaner. Slats: wipe with a clean cloth and a non-chlorine, non-ammonia cleaner

Collection Details

This product is part of the Akupanel 3x1 collection from Akupanel Pro, manufactured and shipped by Interlam.

Samples, Color and Material Review

Use a physical sample to evaluate color, texture, sheen, scale and material variation under the lighting planned for the project. Screen settings and photography cannot fully represent the installed material.

Project Coordination

Before ordering, confirm current dimensions, finish, installation method, lead time, code documentation and maintenance guidance with Roos International. Verify suitability for the substrate and environment, and plan seams and panel layout where multiple panels are used.
